2GPM Ultraviolet Water Sterilizer (14W)(110V) CE Approval (Singal Top 4 Pins)
Product Number:A-140

UVC Lighting

Model No. A-140 (For 110V)
Description 2G UV Water Sterilizer ( 110V )
Specification
1. Flow rate: Clean water: 1.5 Gpm/6.0Lpm,
    DI, R.O.water:2.0Gpm/8.0Lpm
2. Voltage: 100~120V,220~240V, 50/60 Hz
3. UV germicidal lamp: 14W x 1 (Model:UVC-D287T5)
4. Ballast: C-162 BT-014B 14W x 1

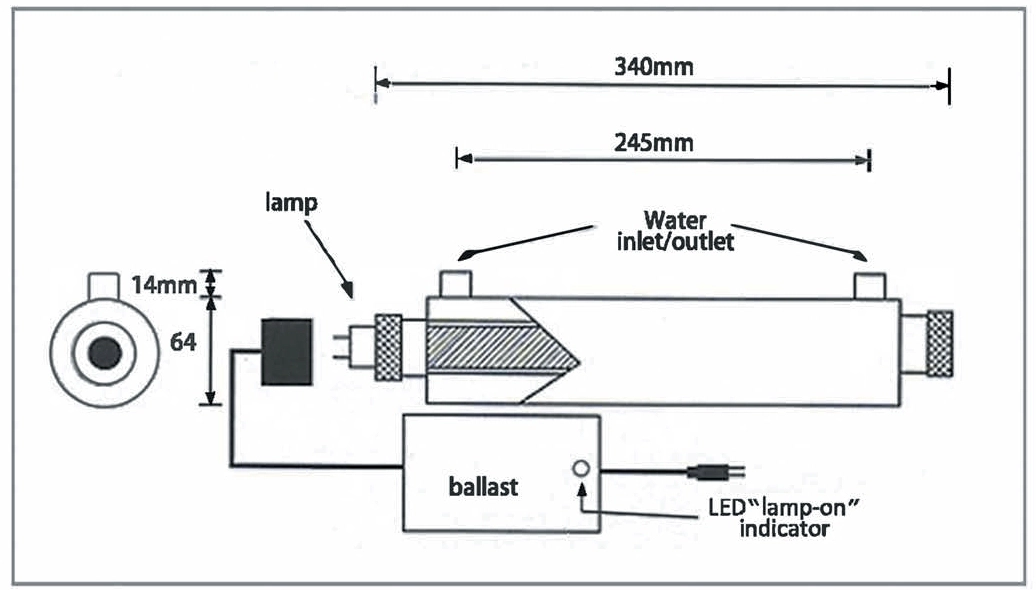

5. Dimension: 64 x 340mm
6. Inlet / outlet size: 1/4 inch NPT
7. Max. working pressure: 125 PSI
8. Chamber/housing: 304 stainless steel
9. Quartz sleeve: Model No. SQ230330
10. Lamp failure warning system: LED + Alarm (option)
11. Lamp average life: 9,000hrs
12. UV sterilizer can effectively reduce Total Organic Compounds (TOCs)



About UV Disinfection Systems

UV disinfection systems let the maximum amount of UV rays to sterilize the water and penetrate the protecting quartz sleeve. UV disinfection systems have a very stable construction, no harmful chemicals or by-products and comes with high quality quartz tube, high-performance lamps. These compact units require minimum space and simple installation. This compact design and economical treatment is for low flow and medium flow applications.
