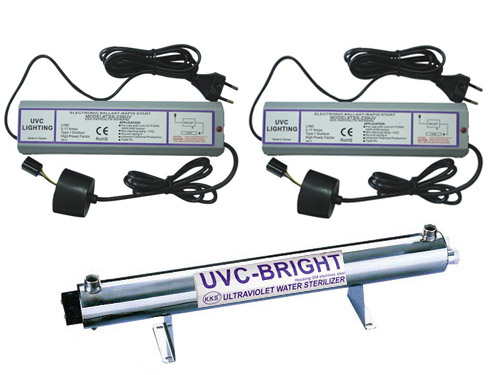

24GPM Ultraviolet Water Sterilizer (39W*2)(220V) CE Approval
A-191-2

UV Assembly & Maintenance ( 1G ~ 24G )

UVC Lighting

Model No. A-191-2 (For 220V)
Description 24G UV Water Sterilizer ( 220V )
Specification
1. Flow rate: Clean water: 20 Gpm/80 Lpm,
    DI, R.O.water:24.0Gpm/96 Lpm
2. Voltage: 100~120V,220~240V, 50/60 Hz
3. UV germicidal lamp: 39W x 2 (Model:UVC-D842T5)
4. Ballast: C-166 ESS-A39T5UV 24W~39W x 2

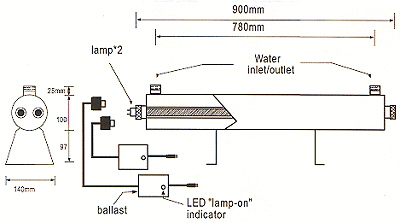

5. Dimension: 100 x 900 mm
6. Inlet / outlet size: 1 inch NPT
7. Max. working pressure: 125 PSI
8. Chamber/housing: 304 or 316 stainless steel
9. Quartz sleeve: Model No. SQ230895 x 2
10. Lamp failure warning system: LED + Alarm
11. Lamp average life: 9,000hrs
12. UV sterilizer can effectively reduce Total Organic Compounds (TOCs)
13. UVC BRIGHT Disinfection / Ultraviolet



About UV Disinfection Systems

UV disinfection systems let the maximum amount of UV rays to sterilize the water and penetrate the protecting quartz sleeve. UV disinfection systems have a very stable construction, no harmful chemicals or by-products and comes with high quality quartz tube, high-performance lamps. These compact units require minimum space and simple installation. This compact design and economical treatment is for low flow and medium flow applications.

Ballast: 24W~39W x 2
Inlet / outlet size: 1 inch NPT
