HY-8099 (With Pump)
5-Stage Twist in EZ Change RO

HY-8099 RO SYSTEM-DM download



Model No. A-225-17

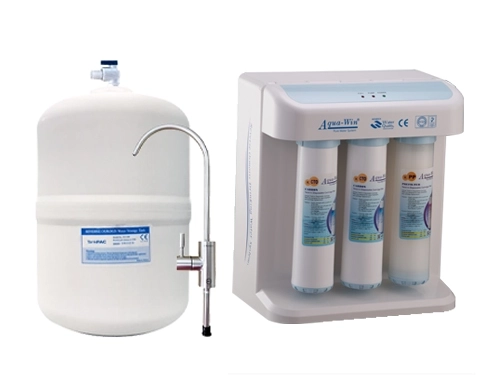

Description HY-8099 Raised Up 5 Stage Twist in EZ Change RO System
Specification
*** LED display shows "FULL" & "PUMP" & "POWER".
***It can be raised up to height of 90° when replacing the inside cartridge filters.
***It is quick and easy for installation. It is quick and easy for installation

1st Stage ---Twist in Disposable PP Filter
2nd Stage---Twist in Disposable Block Carbon Filter
3rd Stage ---Twist in Disposable Block Carbon Filter
4th Stage --- King-Pro 50G RO membrane
5th Stage --- Post in-line Carbon
2.2G NSF Plastic Standard Storage tank

OPTIONAL:
80G Membrane / 100G membrane

Twist in Disposable PP Filter ( B-217-13 )
Twist in Disposable Block Carbon Filter ( B-217-15 )
Twist in Disposable Block Carbon Filter( B-217-15 )
Filter Cartridges Reference Resources:
http://www.aquawin.com.tw/category/disposable-filters.htm

Twist In filter concept

With a transformer, available in 110Volt, 220Volt
Operation pressure: 50 -80 psi
Dimensions: Around (cm) 40 (L) x 26 (W) x 49(H) - RO System
  Around (cm) 25 (L) x 25 (W) x 36 (H) - Tank
Weight: Around 9 kgs - RO System
  Around 3.5 kgs - Tank
