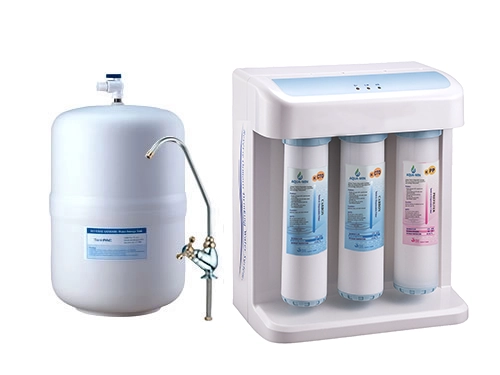

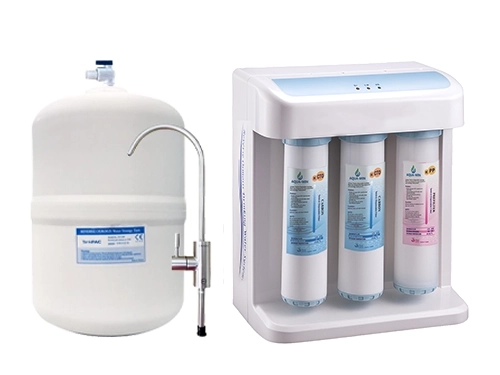

HY-8090 (No Pump)
5-Stage In-Line Disposable Type RO

HY-8090 RO SYSTEM-DM download



Model No. A-225-23
Description HY-8090 Raised Up 5 Stage Twist in EZ Change RO System (No Pump)
Specification
*** It can be raised up to height of 90° when replacing the inside cartridge filters.
***It is quick and easy for installation filter cartridges

1st Stage --- Twist in Disposable PP Filter
2nd Stage --- Twist in Disposable Block Carbon Filter
3rd Stage --- Twist in Disposable Block Carbon Filter
4th Stage --- King-Pro 50G RO membrane
5th Stage --- Post in-line Carbon
2.2G NSF Plastic Standard Storage tank

OPTIONAL:
80G Membrane / 100G membrane

Twist in Disposable PP Filter (B-217-13)
Twist in Disposable Block Carbon Filter (B-217-15)
Twist in Disposable Block Carbon Filter (B-217-15)
Filter Cartridges Reference Resources:
http://www.aquawin.com.tw/category/disposable-filters.htm

Twist In filter concept

Operation pressure: 50 -100 psi
Dimensions: Around (cm) 40 (L) x 26 (W) x 49(H) - RO System
  Around (cm) 25 (L) x 25 (W) x 36 (H) - Tank
Weight: Around 6 kgs - RO System
  Around 3.5 kgs - Tank
