HY-6500G

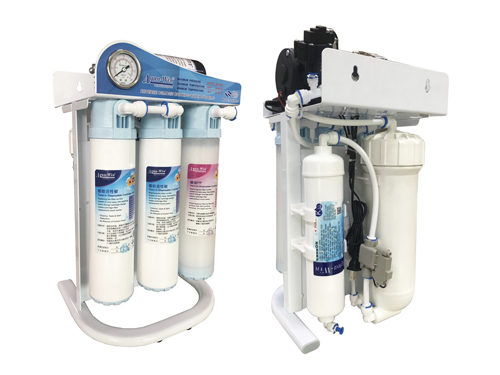

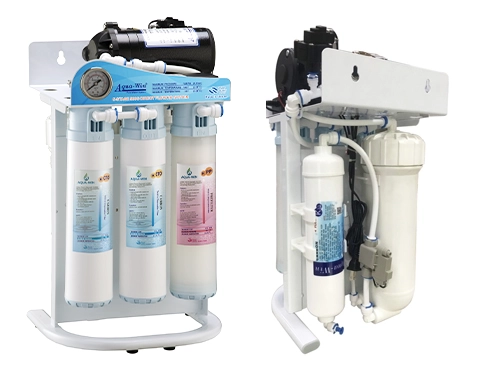

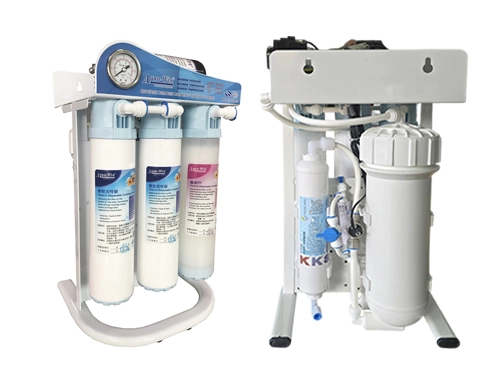

HY-6500G 5-stage 500G Direct Flow RO System(500G Membrane 3012*1)

HY-6500 5-stage 400G Compact Direct Flow RO System

Model No. A-102-13
Description HY-6500G 5-stage 500G Direct Flow RO System(500G Membrane 3012*1)
Specification
The 1st stage: B-217-12   Twist-In Disposable PP Filter
The 2st stage: B-217-15   Twist-In Disposable Block Carbon Fiter
The 3st stage: B-217-15   Twist-In Disposable Block Carbon Fiter
The 4st stage: B-401-19   500GPD RO Membrane
The 5st stage: B-215-9    In-Line 1CL-10 Nano-Silver Activated Carbon Filter
C-154-1    9500N High Flow Rate Booster Pump
C-159-4    Transformer For High Flow Rate Pump(36VDC/2.2A)
C-201-28   10" RO Stand Bracket (For HY-6500 & 5400-B)PI-6
C-217-6/C-217-7   Inlet Feed Water Solenoid Valve Quick Connect AC110V/220V 3/8" 3.5L/min
C-222-3   1600 Flow Restrictor
C-212-4   EZ High Pressure Switches(Check Valve Included)(3/8")
C-214-1   EZ Low Pressure Switches(1/4"NPT)
C-304-6   Water Pressure Gauge Connector 10KG(1/8"NPT)(0~150PSI)

MODEL # A-102-13
1st Stage --- Twist-In Disposable PP Filter
2nd Stage ---Twist-In Disposable Block Carbon Fiter
3rd Stage --- Twist-In Disposable Block Carbon Fiter
4th Stage --- 500GPD RO Membrane
5th Stage --- In-Line 1CL-10 Nano-Silver Activated Carbon Filter
