150 Gallons Per Day Auto Flush RO System

  • Aquawin Water
  • Products > RO System Units > HY-81 、HY-84 、HY-88 COMMERCIAL RO > 150 Gallons Per Day Auto Flush RO System

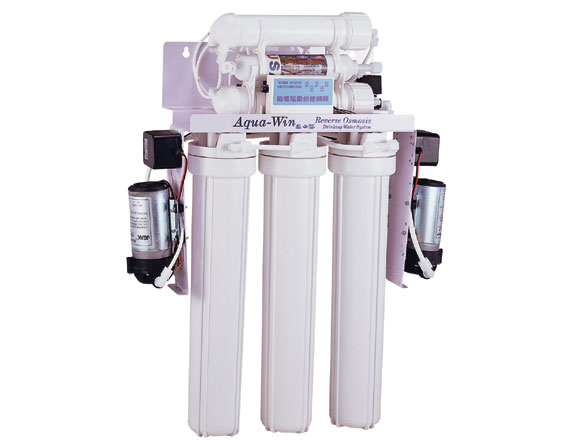

    150 Gallons / Day Auto Flush RO
    Product Number:HY-8150
    Model No. A-114-1
    Description Commercial 5-Stage RO System 150~200 GPDPer Day ( With Pump x 2 ) ( RO Membrane 80G x 2 ) (Automatic Cleaning Membrane) ( With RO Computer IC controller )
    Specification
    HY- 8150: Cleaning RO-film regularly, HY- 8150 can extend the lifetime of RO film. To save energy, HY- 8150 detects water level automatically and the automatic power down system will be kicked off when insufficient water occurred. IC-controlled monitoring system will protect the system operated on and off under low water pressure. Patented joint, easy to replace, reduces leaking problems.
    Capacity: 150 to 200 gallons/day.
    20" White housing x 3
    Bracket x 1
    RO membrane housing x 2
    CL-10 In Line coconut shell Carbon Filter x 1
    5 micron 20" spun sediment filter x 1
    1 micron 20" spun sediment filter x 1
    20" Activated carbon filter x 1
    AQUA-WIN RO Membrane 80g x 2
    Prevent backflow valve x 2
    Solenoid valve x 2
    20" Spanner wrenches x 1
    1/4 inch Tubing for System Connection for 6M
    RO Computer IC controller x 1
    Booster Pump x 1
    Pump Transformer x 1
    Flow Restrictor(500ml) x 2
    Single Clip x 2
    Double Clip x 2
    High Pressure Switch x 1
    Low Pressure Switch x 1
    Drain Clamp x 1
    Brass Ball Valve x 1
    * The parts in the (  ) is the optional item, not included or used in the unit, but you could choose to use or replace the original item with the one in (  ).

    MODEL # A-114-1
    1st Stage --- 20” PP
    2nd Stage ---20” CTO
    3rd Stage --- 20” CTO
    4th Stage --- AQUA-WIN 80G Membrane x 2
    5th Stage --- Post in-line Carbon
    With pump
    Storage Tank & Faucet are optional
