HY-4030-1 (EZ Fittings)
5 Stage CE Standard RO ( EZ Fittings )

ro water systemro water system

Model No. A-156-2

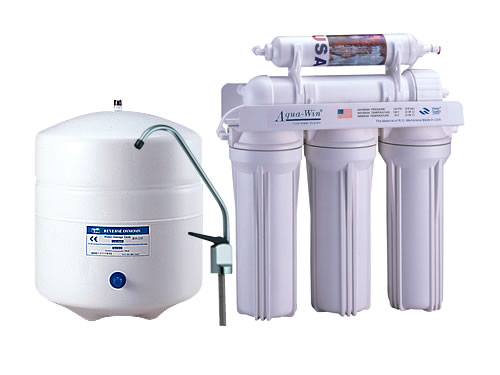

Description HY-4030-1 Typical 5-Stage RO System ( No Pump ) with EZ Fittings
Specification
1st Stage --- 10”PP
2nd Stage ---10”UDF
3rd Stage --- 10”CTO
4th Stage --- King-Pro 50G RO Membrane
5th Stage --- Post in-line Carbon
3.2G NSF Standard Storage tank

OPTIONAL:
80G Membrane / 100G membrane /
Mineral Filter / Alkaline Filter
Operation pressure: 50 -100 psi
Dimensions: Around (cm) 45 (L) x 26 (W) x 50(H) - RO System
  Around (cm) 28 (L) x 28 (W) x 38 (H) - Tank
Weight: Around 8 kgs - RO System
  Around 4 kgs - Tank
