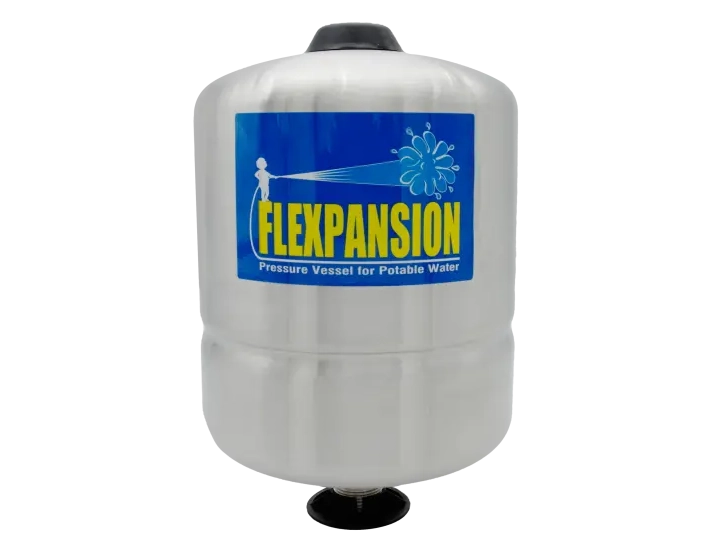

8L Stainless Steel Expansion Tank FP-8【AQUA-WIN】

8Liter Stainless Steel Expansion Tank FP-8 (2.1Gallon)

C-101-5

Product Description

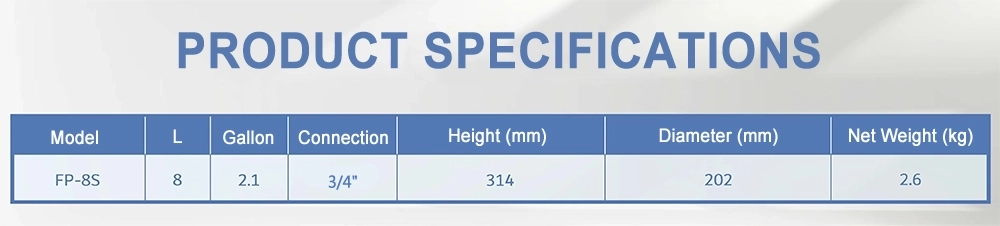

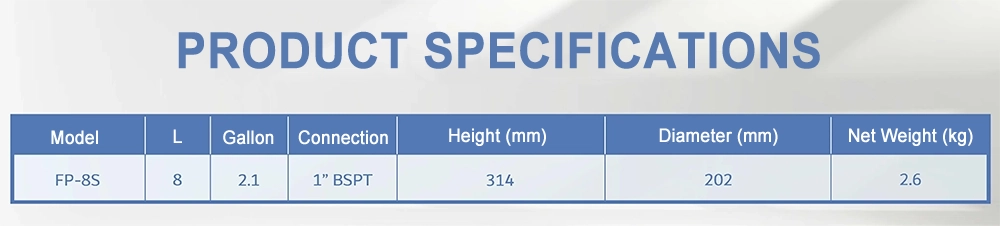

Product Specifications

An expansion tank (or expansion vessel) is a small tank used in water heating and hot water systems to control pressure. When water heats up and expands, the air inside the tank compresses to absorb the extra pressure. This helps stabilize the system and reduces sudden pressure spikes such as water hammer.

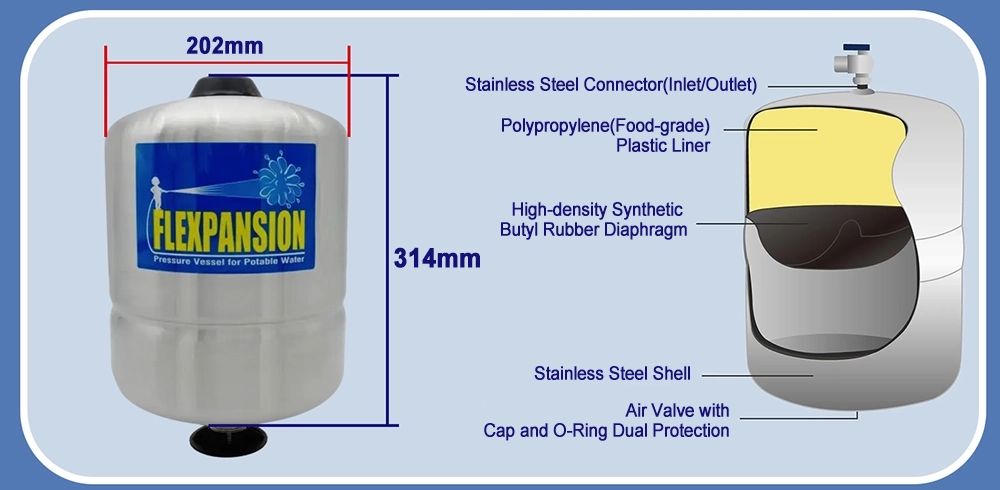

FP-8S steel pressure tank internal structure diagram diaphragm tank for water purifier system

Model No

C-101-5

Description

8Liter Stainless Steel Expansion Tank FP-8 (2.1Gallon)

In-Out Size

1" BSPT

Specification

• Diaphragm design ensures stable water pressure output.
• High-density synthetic butyl rubber diaphragm for durability and reliability.
• #304 stainless steel connectors (inlet and outlet).
• Equipped with air valve cap and O-ring dual protection to prevent air leakage.
• NSF/ANSI 58 certified; CE marked.

FP-8S steel pressure tank structure diagram with butyl rubber diaphragm for water purifier system
