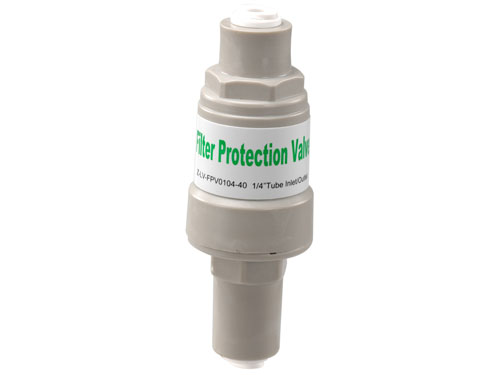

Plastic Cut-Down Pressure Valve
|Description||Pressure Limiting Filter Protection Valve Dual Check Z-LV-FPV-0104|
|Standard||In-Out Size: 1/4" NPT
Flow Rate: 7.5LPM at 100PSI inlet pressure.
Outlet Pressure: 40 / 50 / 70 / 80 / 125 PSI ±10% at 150PSI.
Pressure Ratio: 10:1(for every 1.5PSI increase in inlet pressure above 150PSI, the outlet pressure will increase by 0.145PSI)
Max Inlet Pressure: 230 PSI
Working Temp.: 4°C~40°C
Cut-Down Pressure Valve Features
- High quality pressure limiting valves being applicated for high pressure system to protect downstream components - water filters, drink dispensers, RO system.
- Protect water filteration devices by limiting water pressure and reducing water hammer.
- Different pressure ratio setting for options to suit different application.
- Quick fitting connector for easy to install onto your application.
- Protects water filter units by limiting water pressure. Ideal for R/O units, Fridges, Ice Makers and Coffee Makers. Resists water hammer.
Pressure Limiting Filter Protection Valve Dual Check Z-LV-FPV-0104
1/4” NPT (Outlet Pressure: 40 / 50 / 70 / 80 / 125 PSI ±10% at 150PSI.)
Cut-Down Pressure Valve / Plastic
