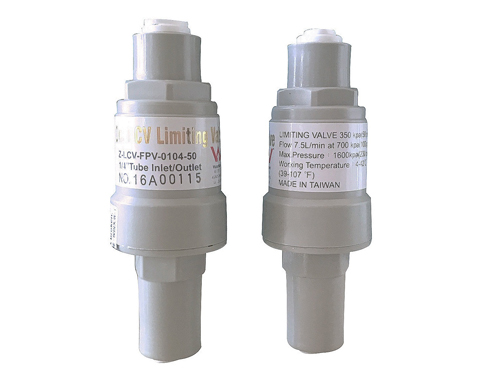

Limiting Valve, Plastic Double Check Valve
Limiting Valve / Plastic / Double Check Valve
C-291-18

Model No. C-291-18
Description Pressure Limiting Filter Protection Valve ( Dual Check Valve Included) Z-LCV-FPV-0104-50
Features
  • Double check valve design, prevent water backflow
  • The main function of the valve is to protects water filtration system RO system, fridges, ice makers and coffee makers by limiting water pressure and resist water hammer.
  • Different pressure ratio option, suitable for different country area
  • Quick fitting connector for easy installation
  • Small sizes with good function, do not occupy assembly spaces.
Specification
  • Inlet & outlet: 1/4" NPT
  • Flow: 7.5LPM (when water inlet is 100PSI)
  • Type: 40, 50, 60, 70, 80, 125PSI
  • Cut down pressure ratio: 10:1
  • Maximum water inlet pressure:230PSI
  • Recommended Temperature: 4°C ~ 40°C
Dimension
  • Length: 114mm
  • Diameter: 36mm
  • Weight: 63g

Cut-Down Pressure Valve Features

  • High quality pressure limiting valves being applicated for high pressure system to protect downstream components - water filters, drink dispensers, RO system.
  • Protect water filteration devices by limiting water pressure and reducing water hammer.
  • Different pressure ratio setting for options to suit different application.
  • Quick fitting connector for easy to install onto your application.
  • Protects water filter units by limiting water pressure. Ideal for R/O units, Fridges, Ice Makers and Coffee Makers. Resists water hammer.

Pressure reducing valve

Pressure Limiting Filter Protection Valve (Dual Check Valve Included) Z-LCV-FPV-0104-50

1/4” NPT (Outlet Pressure: 40 / 50 / 70 / 80 / 125 PSI ±10% at 150PSI.)

Cut-Down Pressure Valve / Plastic / Double Check Valve
