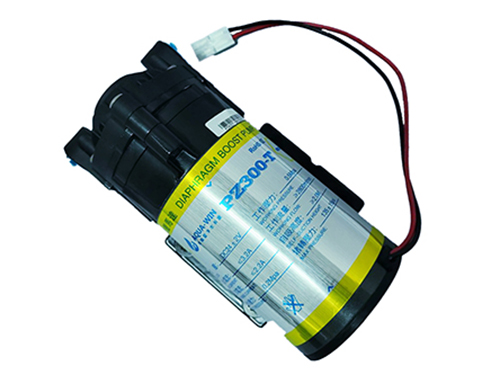

Aqua-Win High Flow Booster Pump PZ300-T (24VDC/2.8LPM)

Volts: DC24±2V
Max Current: ≤3.2A
Working Current: ≤2.2A
Inlet Pressure: 0.2Mpa
Working Pressure: 0.5Mpa
Working Flow: ≥2800ml/min
Self-Suction Height: ≥ 2.0M
Max Pressure: 135±15psi

Pump for RO systems with water production of approximately 500 to 600 gallons per day.
It provides sufficient water to reverse osmosis filtration system to achieve good and stable performance.

The pump uses an advanced diaphragm design, which can exert a self-priming effect.
It can be applied to the end of pipelines or to residential buildings with high pressure.
